Principal component analysis

Overview

Teaching: 90 min
Exercises: 30 min
Questions

  • What is principal component analysis (PCA) and when can it be used?

  • How can we perform a PCA in R?

  • How many principal components are needed to explain a significant amount of variation in the data?

  • How to interpret the output of PCA using loadings and principal components?

Objectives

  • Identify situations where PCA can be used to answer research questions using high-dimensional data.

  • Perform a PCA on high-dimensional data.

  • Select the appropriate number of principal components.

  • Interpret the output of PCA.

Introduction

Imagine a dataset which contains many variables ($p$), close to the total number of rows in the dataset ($n$). Some of these variables are highly correlated and several form groups which you might expect to represent the same overall effect. Such datasets are challenging to analyse for several reasons, with the main problem being how to reduce dimensionality in the dataset while retaining the important features.

In this episode we will explore principal component analysis (PCA) as a popular method of analysing high-dimensional data. PCA is an unsupervised statistical method which allows large datasets of correlated variables to be summarised into smaller numbers of uncorrelated principal components that explain most of the variability in the original dataset. This is useful, for example, during initial data exploration as it allows correlations among data points to be observed and principal components to be calculated for inclusion in further analysis (e.g. linear regression). An example of PCA might be reducing several variables representing aspects of patient health (blood pressure, heart rate, respiratory rate) into a single feature.

Advantages and disadvantages of PCA

Advantages:

Disadvantages:

Supervised vs unsupervised learning

Most statistical problems fall into one of two categories: supervised or unsupervised learning. Examples of supervised learning problems include linear regression and include analyses in which each observation has both at least one independent variable ($x$) as well as a dependent variable ($y$). In supervised learning problems the aim is to predict the value of the response given future observations or to understand the relationship between the dependent variable and the predictors. In unsupervised learning for each observation there is no dependent variable ($y$), but only a series of independent variables. In this situation there is no need for prediction, as there is no dependent variable to predict (hence the analysis can be thought as being unsupervised by the dependent variable). Instead statistical analysis can be used to understand relationships between the independent variables or between observations themselves. Unsupervised learning problems often occur when analysing high-dimensional datasets in which there is no obvious dependent variable to be predicted, but the analyst would like to understand more about patterns between groups of observations or reduce dimensionality so that a supervised learning process may be used.

Challenge 1

Descriptions of three datasets and research questions are given below. For which of these might PCA be considered a useful tool for analysing data so that the research questions may be addressed?

  1. An epidemiologist has data collected from different patients admitted to hospital with infectious respiratory disease. They would like to determine whether length of stay in hospital differs in patients with different respiratory diseases.
  2. An online retailer has collected data on user interactions with its online app and has information on the number of times each user interacted with the app, what products they viewed per interaction, and the type and cost of these products. The retailer would like to use this information to predict whether or not a user will be interested in a new product.
  3. A scientist has assayed gene expression levels in 1000 cancer patients and has data from probes targeting different genes in tumour samples from patients. She would like to create new variables representing relative abundance of different groups of genes to i) find out if genes form subgroups based on biological function and ii) use these new variables in a linear regression examining how gene expression varies with disease severity.
  4. All of the above.

Solution

In the first case, a regression model would be more suitable; perhaps a survival model. In the second, again a regression model, likely linear or logistic, would be more suitable. In the third example, PCA can help to identify modules of correlated features that explain a large amount of variation within the data.

Therefore the answer here is 3.

What is a principal component?

The first principal component is the direction of the data along which the observations vary the most. The second principal component is the direction of the data along which the observations show the next highest amount of variation. For example, Figure 1 shows biodiversity index versus percentage area left fallow for 50 farms in southern England. The red line represents the first principal component direction of the data, which is the direction along which there is greatest variability in the data. Projecting points onto this line (i.e. by finding the location on the line closest to the point) would give a vector of points with the greatest possible variance. The next highest amount of variability in the data is represented by the line perpendicular to first regression line which represents the second principal component (green line).

The second principal component is a linear combination of the variables that is uncorrelated with the first principal component. There are as many principal components as there are variables in your dataset, but as we’ll see, some are more useful at explaining your data than others. By definition, the first principal component explains more variation than other principal components.

Alt

Cap

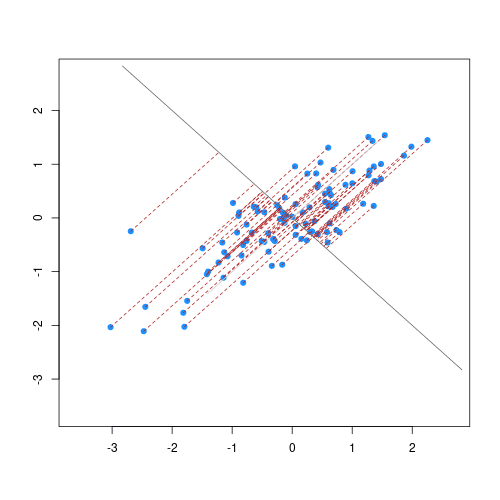

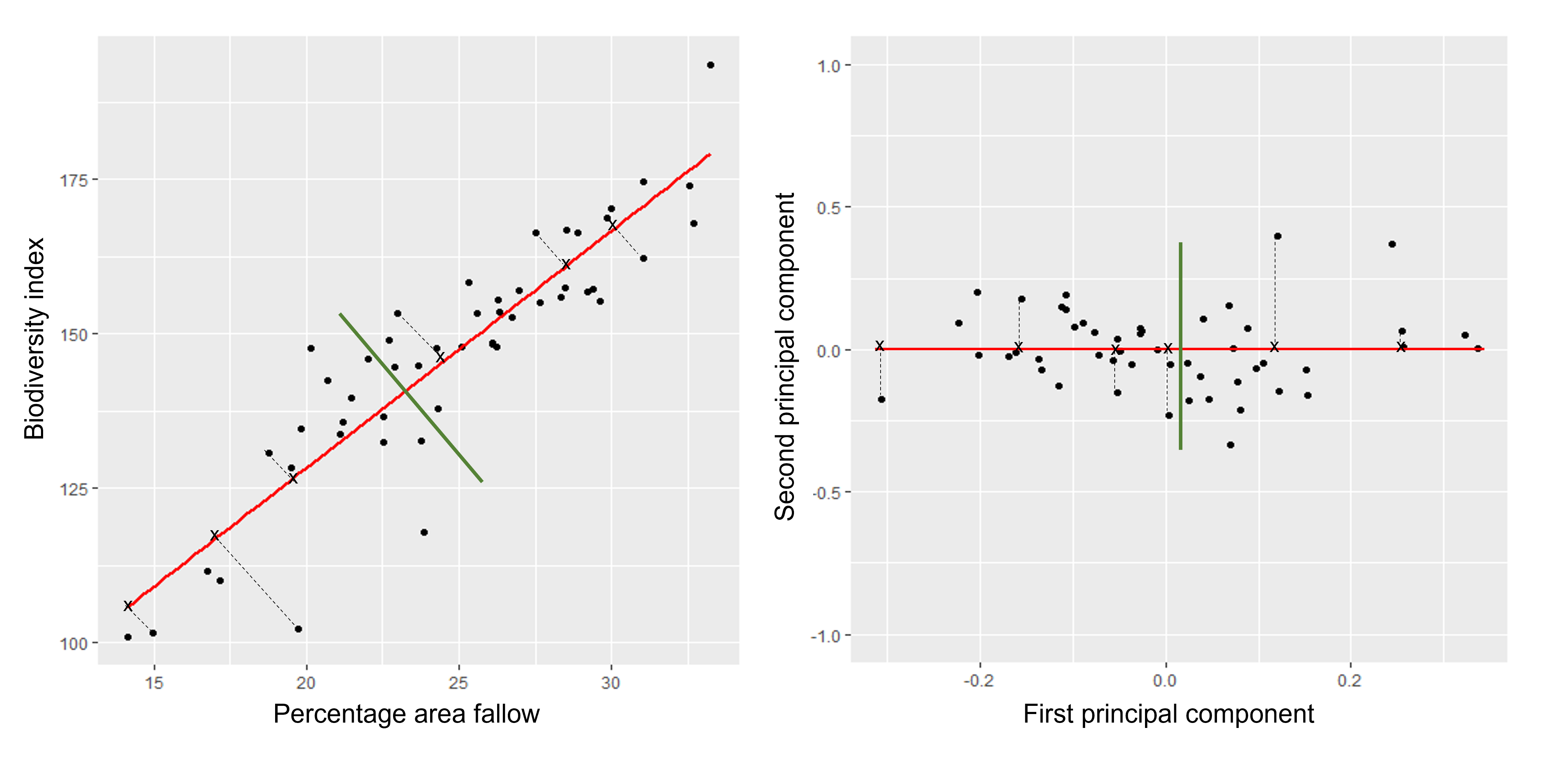

The animation below illustrates how principal components are calculated from data. You can imagine that the black line is a rod and each red dashed line is a spring. The energy of each spring is proportional to its squared length. The direction of the first principal component is the one that minimises the total energy of all of the springs. In the animation below, the springs pull the rod, finding the direction of the first principal component when they reach equilibrium. We then use the length of the springs from the rod as the first principal component. This is explained in more detail on this Q&A website.

Alt

Cap

The first principal component’s scores ($Z_1$) are calculated using the equation:

\[Z_1 = a_{11}X_1 + a_{21}X_2 +....+a_{p1}X_p\]

$X_1…X_p$ represents variables in the original dataset and $a_{11}…a_{p1}$ represent principal component loadings, which can be thought of as the degree to which each variable contributes to the calculation of the principal component. We will come back to principal component scores and loadings further below.

How do we perform a PCA?

A prostate cancer dataset

The prostate dataset represents data from 97 men who have prostate cancer. The data come from a study which examined the correlation between the level of prostate specific antigen and a number of clinical measures in men who were about to receive a radical prostatectomy. The data have 97 rows and 9 columns.

Columns include:

Here we will calculate principal component scores for each of the rows in this dataset, using five principal components (one for each variable included in the PCA). We will include five clinical variables in our PCA, each of the continuous variables in the prostate dataset, so that we can create fewer variables representing clinical markers of cancer progression. Standard PCAs are carried out using continuous variables only.

First, we will examine the prostate dataset (originally part of the lasso2 package):

prostate <- readRDS(here("data/prostate.rds"))

head(prostate)

  X     lcavol  lweight age      lbph svi       lcp gleason pgg45       lpsa
1 1 -0.5798185 2.769459  50 -1.386294   0 -1.386294       6     0 -0.4307829
2 2 -0.9942523 3.319626  58 -1.386294   0 -1.386294       6     0 -0.1625189
3 3 -0.5108256 2.691243  74 -1.386294   0 -1.386294       7    20 -0.1625189
4 4 -1.2039728 3.282789  58 -1.386294   0 -1.386294       6     0 -0.1625189
5 5  0.7514161 3.432373  62 -1.386294   0 -1.386294       6     0  0.3715636
6 6 -1.0498221 3.228826  50 -1.386294   0 -1.386294       6     0  0.7654678

Note that each row of the dataset represents a single patient.

We will create a subset of the data including only the clinical variables we want to use in the PCA.

pros2 <- prostate[, c("lcavol", "lweight", "lbph", "lcp", "lpsa")]
head(pros2)

      lcavol  lweight      lbph       lcp       lpsa
1 -0.5798185 2.769459 -1.386294 -1.386294 -0.4307829
2 -0.9942523 3.319626 -1.386294 -1.386294 -0.1625189
3 -0.5108256 2.691243 -1.386294 -1.386294 -0.1625189
4 -1.2039728 3.282789 -1.386294 -1.386294 -0.1625189
5  0.7514161 3.432373 -1.386294 -1.386294  0.3715636
6 -1.0498221 3.228826 -1.386294 -1.386294  0.7654678

Do we need to standardise the data?

Now we compare the variances between variables in the dataset.

apply(pros2, 2, var)

  lcavol  lweight     lbph      lcp     lpsa
1.389157 0.246642 2.104840 1.955102 1.332476

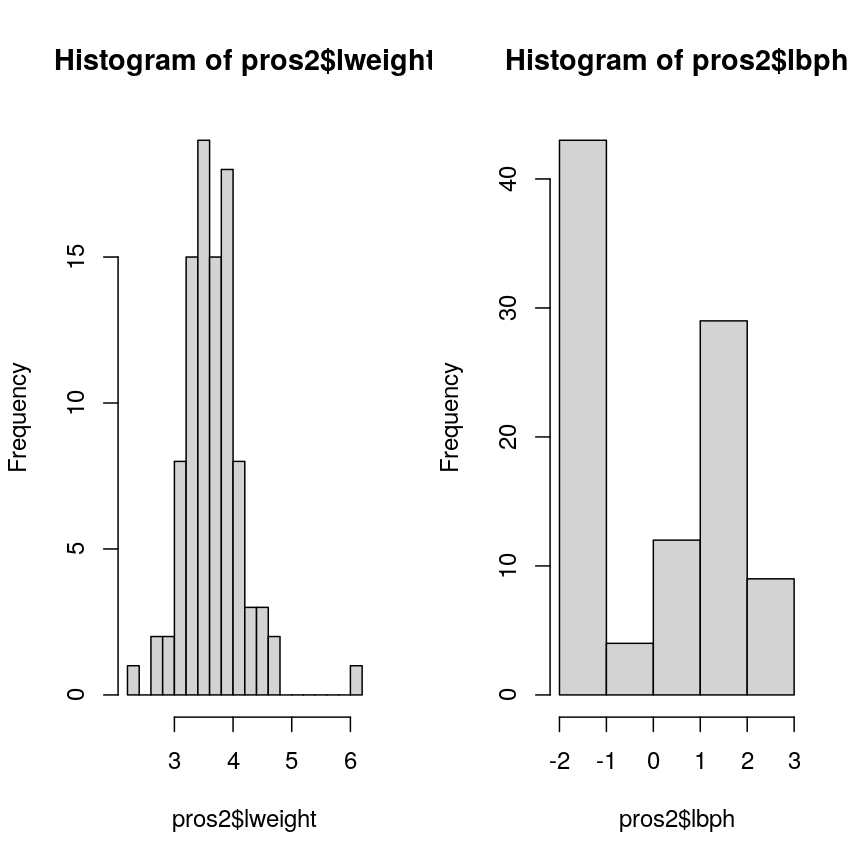

par(mfrow = c(1, 2))
hist(pros2$lweight, breaks = "FD")
hist(pros2$lbph, breaks = "FD")
Alt

Alt

Note that variance is greatest for lbph and lowest for lweight. It is clear from this output that we need to scale each of these variables before including them in a PCA analysis to ensure that differences in variances between variables do not drive the calculation of principal components. In this example we standardise all five variables to have a mean of 0 and a standard deviation of 1.

Challenge 2

Why might it be necessary to standardise variables before performing a PCA?
Can you think of datasets where it might not be necessary to standardise variables? Discuss.

  1. To make the results of the PCA interesting.
  2. If you want to ensure that variables with different ranges of values contribute equally to analysis.
  3. To allow the feature matrix to be calculated faster, especially in cases where there are a lot of input variables.
  4. To allow both continuous and categorical variables to be included in the PCA.
  5. All of the above.

Solution

2. Scaling the data isn’t guaranteed to make the results more interesting. It also won’t affect how quickly the output will be calculated, whether continuous and categorical variables are present or not.

It is done to ensure that all features have equal weighting in the resulting PCs.

You may not want to standardise datasets which contain continuous variables all measured on the same scale (e.g. gene expression data or RNA sequencing data). In this case, variables with very little sample-to-sample variability may represent only random noise, and standardising the data would give these extra weight in the PCA.

Next we will carry out a PCA using the prcomp() function in base R. The input data (pros2) is in the form of a matrix. Note that the scale = TRUE argument is used to standardise the variables to have a mean 0 and standard deviation of 1.

pca.pros <- prcomp(pros2, scale = TRUE, center = TRUE)
pca.pros

Standard deviations (1, .., p=5):
[1] 1.5648756 1.1684678 0.7452990 0.6362941 0.4748755

Rotation (n x k) = (5 x 5):
              PC1         PC2         PC3         PC4         PC5
lcavol  0.5616465 -0.23664270  0.01486043  0.22708502 -0.75945046
lweight 0.2985223  0.60174151 -0.66320198 -0.32126853 -0.07577123
lbph    0.1681278  0.69638466  0.69313753  0.04517286 -0.06558369
lcp     0.4962203 -0.31092357  0.26309227 -0.72394666  0.25253840
lpsa    0.5665123 -0.01680231 -0.10141557  0.56487128  0.59111493

How many principal components do we need?

We have calculated one principal component for each variable in the original dataset. How do we choose how many of these are necessary to represent the true variation in the data, without having extra components that are unnecessary?

Let’s look at the relative importance of each component using summary.

summary(pca.pros)

Importance of components:
                          PC1    PC2    PC3     PC4    PC5
Standard deviation     1.5649 1.1685 0.7453 0.63629 0.4749
Proportion of Variance 0.4898 0.2731 0.1111 0.08097 0.0451
Cumulative Proportion  0.4898 0.7628 0.8739 0.95490 1.0000

This returns the proportion of variance in the data explained by each of the (p = 5) principal components. In this example, PC1 explains approximately 49% of variance in the data, PC2 27% of variance, PC3 a further 11%, PC4 approximately 8% and PC5 around 5%.

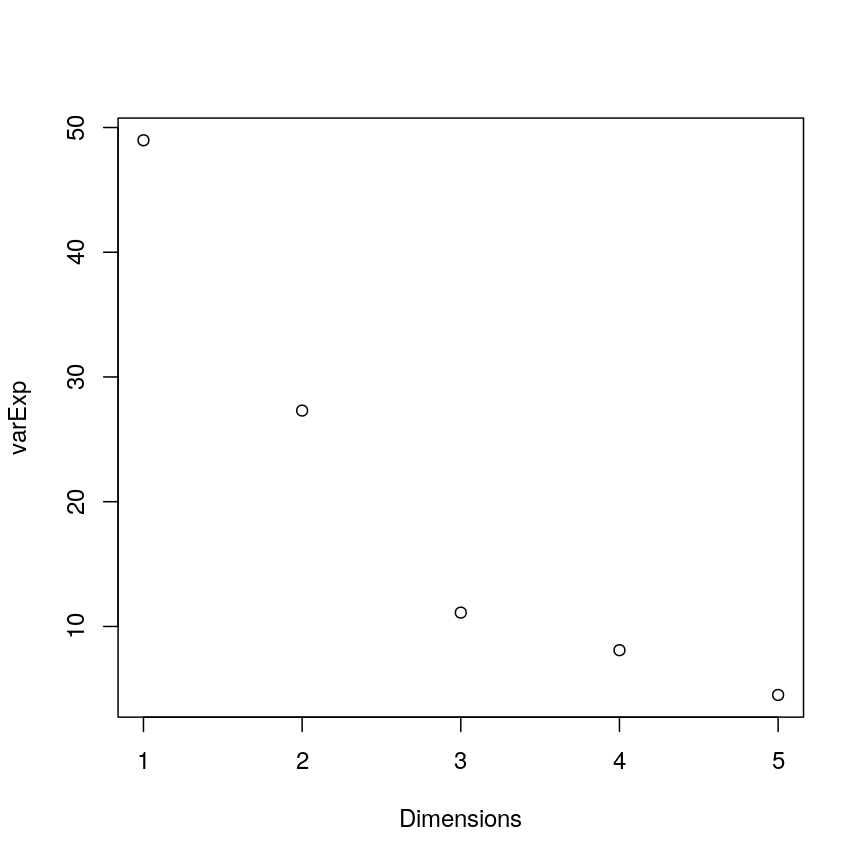

Let us visualise this. A plot of the amount of variance accounted for by each PC is also called a scree plot. Note that the amount of variance accounted for by a principal component is also called eigenvalue and thus the y-axis in scree plots if often labelled “eigenvalue”.

Often, scree plots show a characteristic pattern where initially, the variance drops rapidly with each additional principal component. But then there is an “elbow” after which the variance decreases more slowly. The total variance explained up to the elbow point is sometimes interpreted as structural variance that is relevant and should be retained versus noise which may be discarded after the elbow.

# calculate variance explained
varExp <- (pca.pros$sdev^2) / sum(pca.pros$sdev^2) * 100
# calculate percentage variance explained using output from the PCA
varDF <- data.frame(Dimensions = 1:length(varExp), varExp = varExp)
# create new dataframe with five rows, one for each principal component

plot(varDF)
Alt

Alt

The screeplot shows that the first principal component explains most of the variance in the data (>50%) and each subsequent principal component explains less and less of the total variance. The first two principal components explain >70% of variance in the data. But what do these two principal components mean?

What are loadings and principal component scores?

Most PCA functions will produce two main output matrices: the principal component scores and the loadings. The matrix of principal component scores has as many rows as there were observations in the input matrix. These scores are what is usually visualised or used for down-stream analyses. The matrix of loadings (also called rotation matrix) has as many rows as there are features in the original data. It contains information about how the (usually centered and scaled) original data relate to the PC scores.

When calling a PCA object generated with prcomp(), the loadings are printed by default:

pca.pros

Standard deviations (1, .., p=5):
[1] 1.5648756 1.1684678 0.7452990 0.6362941 0.4748755

Rotation (n x k) = (5 x 5):
              PC1         PC2         PC3         PC4         PC5
lcavol  0.5616465 -0.23664270  0.01486043  0.22708502 -0.75945046
lweight 0.2985223  0.60174151 -0.66320198 -0.32126853 -0.07577123
lbph    0.1681278  0.69638466  0.69313753  0.04517286 -0.06558369
lcp     0.4962203 -0.31092357  0.26309227 -0.72394666  0.25253840
lpsa    0.5665123 -0.01680231 -0.10141557  0.56487128  0.59111493

The principal component scores are obtained by carrying out matrix multiplication of the (usually centered and scaled) original data times the loadings. The following callout demonstrates this.

Computing a PCA “by hand”

The rotation matrix obtained in a PCA is identical to the eigenvectors of the covariance matrix of the data. Multiplying these with the (centered and scaled) data yields the PC scores:

pros2.scaled <- scale(pros2) # centre and scale the Prostate data
pros2.cov <- cov(pros2.scaled)   #generate covariance matrix
pros2.cov

           lcavol   lweight         lbph          lcp      lpsa
lcavol  1.0000000 0.1941283  0.027349703  0.675310484 0.7344603
lweight 0.1941283 1.0000000  0.434934636  0.100237795 0.3541204
lbph    0.0273497 0.4349346  1.000000000 -0.006999431 0.1798094
lcp     0.6753105 0.1002378 -0.006999431  1.000000000 0.5488132
lpsa    0.7344603 0.3541204  0.179809410  0.548813169 1.0000000

pros2.eigen <- eigen(pros2.cov) # preform eigen decomposition
pros2.eigen # The slot $vectors = rotation of the PCA

eigen() decomposition
$values
[1] 2.4488355 1.3653171 0.5554705 0.4048702 0.2255067

$vectors
           [,1]        [,2]        [,3]        [,4]        [,5]
[1,] -0.5616465  0.23664270  0.01486043  0.22708502  0.75945046
[2,] -0.2985223 -0.60174151 -0.66320198 -0.32126853  0.07577123
[3,] -0.1681278 -0.69638466  0.69313753  0.04517286  0.06558369
[4,] -0.4962203  0.31092357  0.26309227 -0.72394666 -0.25253840
[5,] -0.5665123  0.01680231 -0.10141557  0.56487128 -0.59111493

# generate PC scores by by hand, using matrix multiplication
my.pros2.pcs <- pros2.scaled %*% pros2.eigen$vectors
# compare results

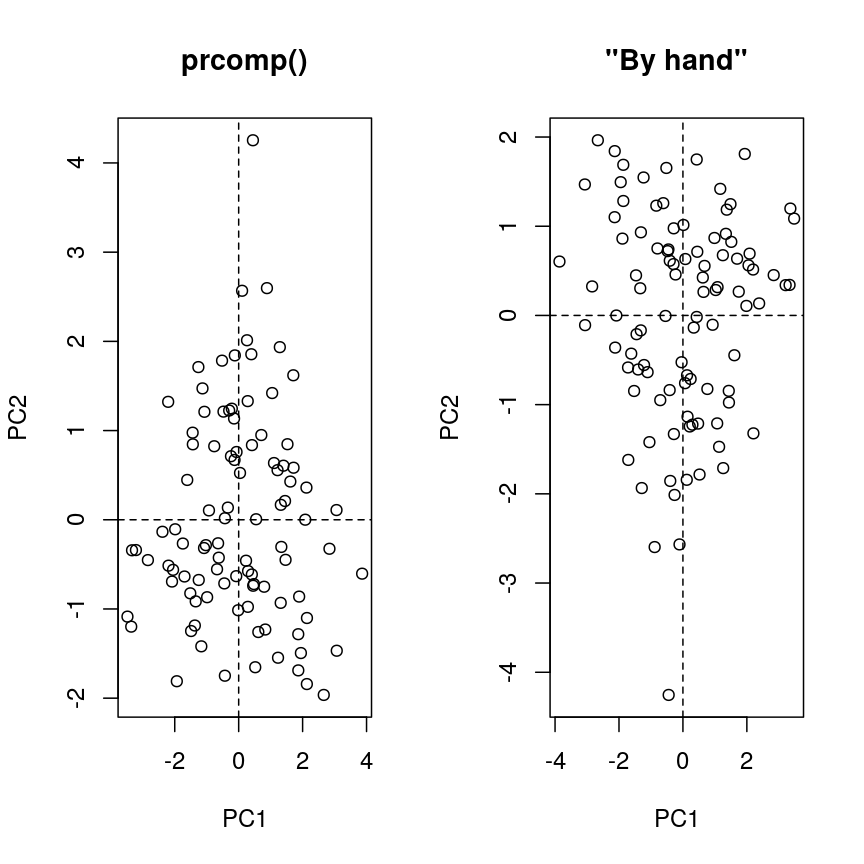

par(mfrow=c(1,2))
plot(pca.pros$x[,1:2], main="prcomp()")
abline(h=0, v=0, lty=2)
plot(my.pros2.pcs[,1:2], main="\"By hand\"", xlab="PC1", ylab="PC2")
abline(h=0, v=0, lty=2)
plot of chunk pca-by-hand

plot of chunk pca-by-hand

par(mfrow=c(1,1))
# Note that the axis orientations may be swapped but the relative positions of the dots should be the same in both plots.

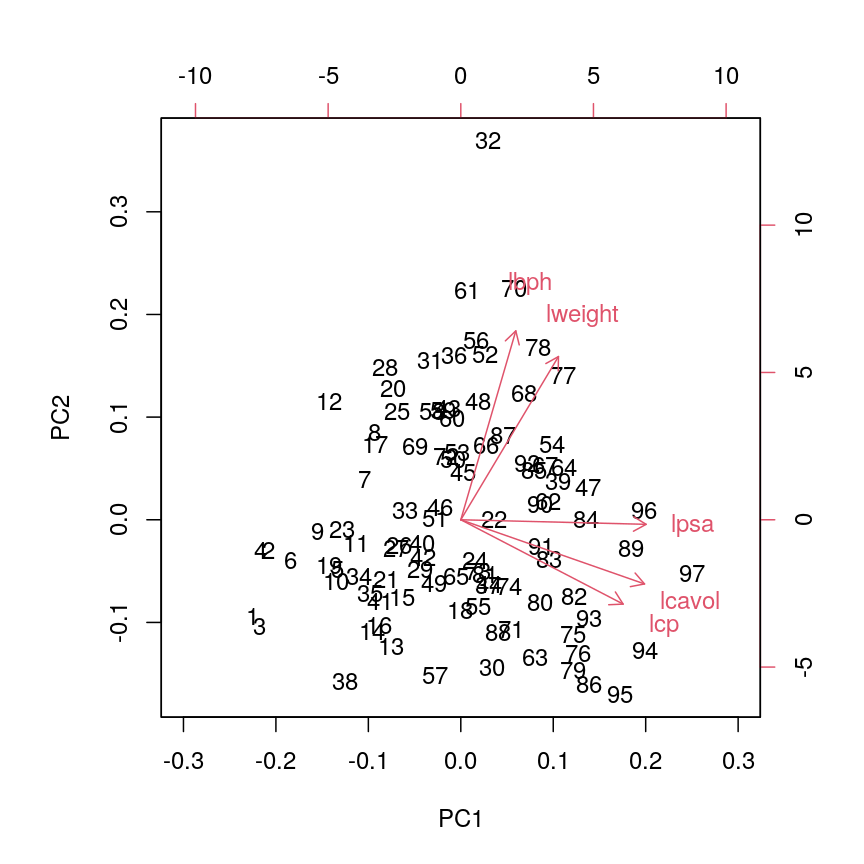

One way to visualise how principal components relate to the original variables is by creating a biplot. Biplots usually show two principal components plotted against each other. Observations are sometimes labelled with numbers. The contribution of each original variable to the principal components displayed is then shown by arrows (generated from those two columns of the rotation matrix that correspond to the principal components shown). NB, there are several biplot implementations in different R libraries. It is thus a good idea to specify the desired package when calling biplot(). A biplot of the first two principal components can be generated as follows:

stats::biplot(pca.pros, xlim = c(-0.3, 0.3))
Alt

Alt

This biplot shows the position of each patient on a 2-dimensional plot where loadings can be observed via the red arrows associated with each of the variables. The variables lpsa, lcavol and lcp are associated with positive values on PC1 while positive values on PC2 are associated with the variables lbph and lweight. The length of the arrows indicates how much each variable contributes to the calculation of each principal component.

The left and bottom axes show normalised principal component scores. The axes on the top and right of the plot are used to interpret the loadings, where loadings are scaled by the standard deviation of the principal components (pca.pros$sdev) times the square root the number of observations.

Finally, you need to know that PC scores and rotations may have different slot names, depending on the PCA implementation you use. Here are some examples:

library::command() PC scores Loadings
stats::prcomp() $x $rotation
stats::princomp() $scores $loadings
PCAtools::pca() $rotated $loadings

Using PCA to analyse gene expression data

In this section you will carry out your own PCA using the Bioconductor package PCAtools applied to gene expression data to explore the topics covered above. PCAtools provides functions that can be used to explore data via PCA and produce useful figures and analysis tools. The package is made for the somewhat unusual Bioconductor style of data tables (observations in columns, features in rows). When using Bioconductor data sets and PCAtools, it is thus not necessary to transpose the data.

A gene expression dataset of cancer patients

The dataset we will be analysing in this lesson includes two subsets of data:

Let’s load the PCAtools package and the data.

library("PCAtools")

We will first load the microarray breast cancer gene expression data and associated metadata, downloaded from the Gene Expression Omnibus.

library("SummarizedExperiment")
cancer <- readRDS(here::here("data/cancer_expression.rds"))
mat <- assay(cancer)
metadata <- colData(cancer)

View(mat)
#nrow=22215 probes
#ncol=91 samples

View(metadata)
#nrow=91
#ncol=8

all(colnames(mat) == rownames(metadata))

[1] TRUE

#Check that column names and row names match
#If they do should return TRUE

The ‘mat’ variable contains a matrix of gene expression profiles for each sample. Rows represent gene expression measurements and columns represent samples. The ‘metadata’ variable contains the metadata associated with the gene expression data including the name of the study from which data originate, the age of the patient from which the sample was taken, whether or not an oestrogen receptor was involved in their cancer and the grade and size of the cancer for each sample (represented by rows).

Microarray data are difficult to analyse for several reasons. Firstly, they are typically high-dimensional and therefore are subject to the same difficulties associated with analysing high dimensional data outlined above (i.e. p>n, large numbers of rows, multiple possible response variables, curse of dimensionality). Secondly, formulating a research question using microarray data can be difficult, especially if not much is known a priori about which genes code for particular phenotypes of interest. Finally, exploratory analysis, which can be used to help formulate research questions and display relationships, is difficult using microarray data due to the number of potentially interesting response variables (i.e. expression data from probes targeting different genes).

If researchers hypothesise that groups of genes (e.g. biological pathways) may be associated with different phenotypic characteristics of cancers (e.g. histologic grade, tumour size), using statistical methods that reduce the number of columns in the microarray matrix to a smaller number of dimensions representing groups of genes would help visualise the data and address research questions regarding the effect different groups of genes have on disease progression.

Using the PCAtools we will apply a PCA to the cancer gene expression data, plot the amount of variation in the data explained by each principal component and plot the most important principal components against each other as well as understanding what each principal component represents.

Challenge 3

Apply a PCA to the cancer gene expression data using the pca() function from PCAtools. You can use the help files in PCAtools to find out about the pca() function (type help("pca") or ?pca in R).

Let us assume we only care about the principal components accounting for the top 80% of the variance in the dataset. Use the removeVar argument in pca() to remove the PCs accounting for the bottom 20%.

As in the example using prostate data above, examine the first 5 rows and columns of rotated data and loadings from your PCA.

Solution

pc <- pca(mat, metadata = metadata)
#Many PCs explain a very small amount of the total variance in the data
#Remove the lower 20% of PCs with lower variance
pc <- pca(mat, metadata = metadata, removeVar = 0.2)
#Explore other arguments provided in pca
pc$rotated[1:5, 1:5]

               PC1        PC2        PC3        PC4        PC5
GSM65752 -29.79105  43.866788   3.255903 -40.663138 15.3427597
GSM65753 -37.33911 -15.244788  -4.948201  -6.182795  9.4725870
GSM65755 -29.41462   7.846858 -22.880525 -16.149669 22.3821009
GSM65757 -33.35286   1.343573 -22.579568   2.200329 15.0082786
GSM65758 -40.51897  -8.491125   5.288498  14.007364  0.8739772

pc$loadings[1:5, 1:5]

                    PC1          PC2          PC3        PC4          PC5
206378_at -0.0024680993 -0.053253543 -0.004068209 0.04068635  0.015078376
205916_at -0.0051557973  0.001315022 -0.009836545 0.03992371  0.038552048
206799_at  0.0005684075 -0.050657061 -0.009515725 0.02610233  0.006208078
205242_at  0.0130742288  0.028876408  0.007655420 0.04449641 -0.001061205
206509_at  0.0019031245 -0.054698479 -0.004667356 0.01566468  0.001306807

which.max(pc$loadings[, 1])

[1] 49

pc$loadings[49, ]

                   PC1          PC2         PC3          PC4          PC5
215281_x_at 0.03752947 -0.007369379 0.006243377 -0.008242589 -0.004783206
                   PC6          PC7         PC8         PC9          PC10
215281_x_at 0.01194012 -0.002822407 -0.01216792 0.001137451 -0.0009056616
                   PC11          PC12       PC13         PC14          PC15
215281_x_at -0.00196034 -0.0001676705 0.00699201 -0.002897995 -0.0005044658
                     PC16        PC17         PC18        PC19         PC20
215281_x_at -0.0004547916 0.002277035 -0.006199078 0.002708574 -0.006217326
                  PC21        PC22        PC23        PC24        PC25
215281_x_at 0.00516745 0.007625912 0.003434534 0.005460017 0.001477415
                   PC26         PC27          PC28         PC29       PC30
215281_x_at 0.002350428 0.0007183107 -0.0006195515 0.0006349803 0.00413627
                    PC31        PC32         PC33         PC34         PC35
215281_x_at 0.0001322301 0.003182956 -0.002123462 -0.001042769 -0.001729869
                    PC36        PC37        PC38          PC39        PC40
215281_x_at -0.006556369 0.005766949 0.002537993 -0.0002846248 -0.00018195
                     PC41        PC42         PC43          PC44         PC45
215281_x_at -0.0007970789 0.003888626 -0.008210075 -0.0009570174 0.0007998935
                     PC46         PC47        PC48        PC49         PC50
215281_x_at -0.0006931441 -0.005717836 0.005189649 0.002591188 0.0007810259
                   PC51        PC52         PC53         PC54        PC55
215281_x_at 0.006610815 0.005371134 -0.001704796 -0.002286475 0.001365417
                   PC56         PC57        PC58         PC59         PC60
215281_x_at 0.003529892 0.0003375981 0.009895923 -0.001564423 -0.006989092
                   PC61        PC62         PC63          PC64        PC65
215281_x_at 0.000971273 0.001345406 -0.003575415 -0.0005588113 0.006516669
                    PC66        PC67       PC68         PC69        PC70
215281_x_at -0.008770186 0.006699641 0.01284606 -0.005041574 0.007845653
                   PC71        PC72         PC73         PC74        PC75
215281_x_at 0.003964697 -0.01104367 -0.001506485 -0.001583824 0.003798343
                   PC76         PC77         PC78         PC79          PC80
215281_x_at 0.004817252 -0.001290033 -0.004402926 -0.003440367 -0.0001646198
                   PC81        PC82          PC83         PC84        PC85
215281_x_at 0.003923775 0.003179556 -0.0004388192 9.664648e-05 0.003501335
                   PC86        PC87          PC88         PC89         PC90
215281_x_at -0.00112973 0.006489667 -0.0005039785 -0.004296355 -0.002751513
                    PC91
215281_x_at -0.001877408

which.max(pc$loadings[, 2])

[1] 27

pc$loadings[27, ]

                   PC1        PC2          PC3        PC4          PC5
211122_s_at 0.01649085 0.05090275 -0.003378728 0.05178144 -0.003742393
                    PC6         PC7          PC8        PC9        PC10
211122_s_at -0.00543753 -0.03522848 -0.006333521 0.01575401 0.004732546
                   PC11        PC12        PC13        PC14       PC15
211122_s_at 0.004687599 -0.01349892 0.005207937 -0.01731898 0.02323893
                   PC16       PC17        PC18       PC19        PC20
211122_s_at -0.02069509 0.01477432 0.005658529 0.02667751 -0.01333503
                    PC21        PC22       PC23         PC24        PC25
211122_s_at -0.003254036 0.003572342 0.01416779 -0.005511838 -0.02582847
                  PC26        PC27       PC28        PC29       PC30      PC31
211122_s_at 0.03405417 -0.01797345 0.01826328 0.005123959 0.01300763 0.0127127
                   PC32       PC33       PC34        PC35        PC36
211122_s_at 0.002477672 0.01933214 0.03017661 -0.01935071 -0.01960912
                   PC37        PC38        PC39        PC40       PC41
211122_s_at 0.004411188 -0.01263612 -0.02019279 -0.01441513 -0.0310399
                   PC42         PC43        PC44        PC45        PC46
211122_s_at -0.02540426 0.0007949801 -0.00200195 -0.01748543 0.006881834
                   PC47         PC48        PC49         PC50        PC51
211122_s_at 0.006690698 -0.004000732 -0.02747926 -0.006963189 -0.02232332
                     PC52        PC53        PC54        PC55       PC56
211122_s_at -0.0003089115 -0.01604491 0.005649511 -0.02629501 0.02332997
                   PC57        PC58        PC59        PC60         PC61
211122_s_at -0.01248022 -0.01563245 0.005369433 0.009445262 -0.005209349
                  PC62       PC63       PC64        PC65        PC66
211122_s_at 0.01787645 0.01629425 0.02457665 -0.02384242 0.002814479
                    PC67        PC68         PC69         PC70       PC71
211122_s_at 0.0004584731 0.007939733 -0.009554166 -0.003967123 0.01825668
                   PC72        PC73        PC74        PC75        PC76
211122_s_at -0.00580374 -0.02236727 0.001295688 -0.02264723 0.006855855
                   PC77         PC78       PC79         PC80        PC81
211122_s_at 0.004995447 -0.008404118 0.00442875 -0.001027912 0.006104406
                   PC82        PC83         PC84       PC85       PC86
211122_s_at -0.01988441 0.009667348 -0.008248781 0.01198369 0.01221713
                    PC87        PC88        PC89        PC90        PC91
211122_s_at -0.003864842 -0.02876816 -0.01771452 -0.02164973 0.003346046

The function pca() is used to perform PCA, and uses as inputs a matrix (mat) containing continuous numerical data in which rows are data variables and columns are samples, and metadata associated with the matrix in which rows represent samples and columns represent data variables. It has options to centre or scale the input data before a PCA is performed, although in this case gene expression data do not need to be transformed prior to PCA being carried out as variables are measured on a similar scale (values are comparable between rows). The output of the pca() function includes a lot of information such as loading values for each variable (loadings), principal component scores (rotated) and the amount of variance in the data explained by each principal component.

Rotated data shows principal component scores for each sample and each principal component. Loadings the contribution each variable makes to each principal component.

Scaling variables for PCA

When running pca() above, we kept the default setting, scale=FALSE. That means genes with higher variation in their expression levels should have higher loadings, which is what we are interested in. Whether or not to scale variables for PCA will depend on your data and research question.

Note that this is different from normalising gene expression data. Gene expression data have to be normalised before donwstream analyses can be carried out. This is to reduce to effect technical and other potentially confounding factors. We assume that the expression data we use had been noralised previously.

Choosing how many components are important to explain the variance in the data

As in the example using the prostate dataset we can use a screeplot to compare the proportion of variance in the data explained by each principal component. This allows us to understand how much information in the microarray dataset is lost by projecting the observations onto the first few principal components and whether these principal components represent a reasonable amount of the variation. The proportion of variance explained should sum to one.

There are no clear guidelines on how many principal components should be included in PCA: your choice depends on the total variability of the data and the size of the dataset. We often look at the ‘elbow’ on the screeplot as an indicator that the addition of principal components does not drastically contribute to explain the remaining variance or choose an arbitory cut off for proportion of variance explained.

Challenge 4

Using the screeplot() function in PCAtools, create a screeplot to show proportion of variance explained by each principal component. Explain the output of the screeplot in terms of proportion of variance in data explained by each principal component.

Solution

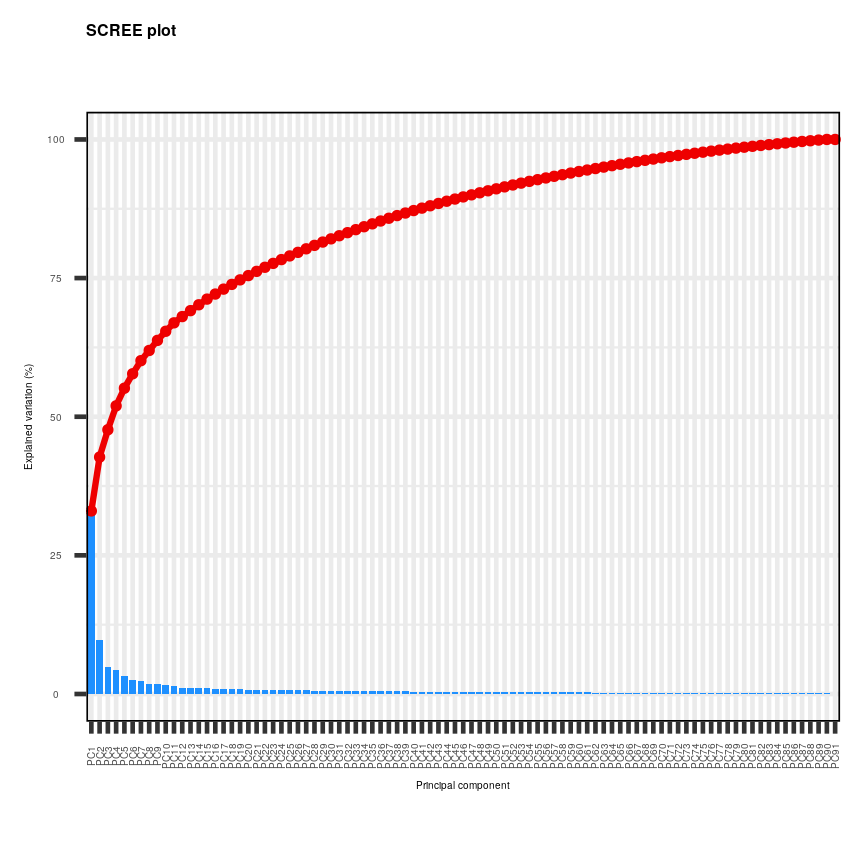

screeplot(pc, axisLabSize = 5, titleLabSize = 8)
Alt

Alt

Note that first principal component (PC1) explains more variation than other principal components (which is always the case in PCA). The screeplot shows that the first principal component only explains ~33% of the total variation in the micrarray data and many principal components explain very little variation. The red line shows the cumulative percentage of explained variation with increasing principal components. Note that in this case 18 principal components are needed to explain over 75% of variation in the data. This is not an unusual result for complex biological datasets including genetic information as clear relationships between groups are sometimes difficult to observe in the data. The screeplot shows that using a PCA we have reduced 91 predictors to 18 in order to explain a significant amount of variation in the data. See additional arguments in screeplot function for improving the appearance of the plot.

Investigating the principal components

Once the most important principal components have been identified using screeplot(), these can be explored in more detail by plotting principal components against each other and highlighting points based on variables in the metadata. This will allow any potential clustering of points according to demographic or phenotypic variables to be seen.

We can use biplots to look for patterns in the output from the PCA. Note that there are two functions called biplot(), one in the package PCAtools and one in stats. Both functions produce biplots but their scales are different!

Challenge 5

Create a biplot of the first two principal components from your PCA using biplot() function in PCAtools. See help("PCAtools::biplot") for arguments and their meaning. For instance, lab or colBy may be useful.

Examine whether the data appear to form clusters. Explain your results.

Solution

biplot(pc, lab = NULL, colby = 'Grade', legendPosition = 'top')
Alt

Alt

The biplot shows the position of patient samples relative to PC1 and PC2 in a 2-dimensional plot. Note that two groups are apparent along the PC1 axis according to expressions of different genes while no separation can be seem along the PC2 axis. Labels of patient samples are automatically added in the biplot. Labels for each sample are added by default, but can be removed if there is too much overlap in names. Note that PCAtools does not scale biplot in the same way as biplot using the stats package.

Let’s consider this biplot in more detail, and also display the loadings:

Challenge 6

Use colby and lab arguments in biplot() to explore whether these two groups may cluster by patient age or by whether or not the sample expresses the oestrogen receptor gene (ER+ or ER-).

Note: You may see a warning about ggrepel. This happens when there are many labels but little space for plotting. This is not usually a serious problem - not all labels will be shown.

Solution

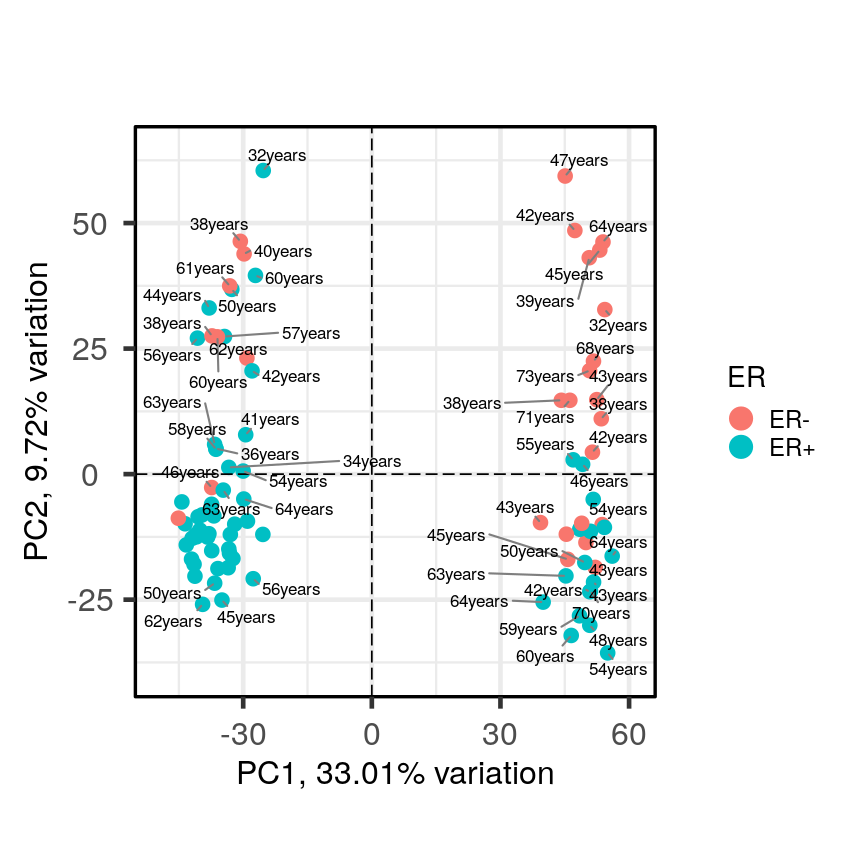

  PCAtools::biplot(pc,
    lab = paste0(pc$metadata$Age,'years'),
    colby = 'ER',
    hline = 0, vline = 0,
    legendPosition = 'right')

Warning: ggrepel: 35 unlabeled data points (too many overlaps). Consider
increasing max.overlaps
Alt

Alt

It appears that one cluster has more ER+ samples than the other group.

So far, we have only looked at a biplot of PC1 versus PC2 which only gives part of the picture. The pairplots() function in PCAtools can be used to create multiple biplots including different principal components.

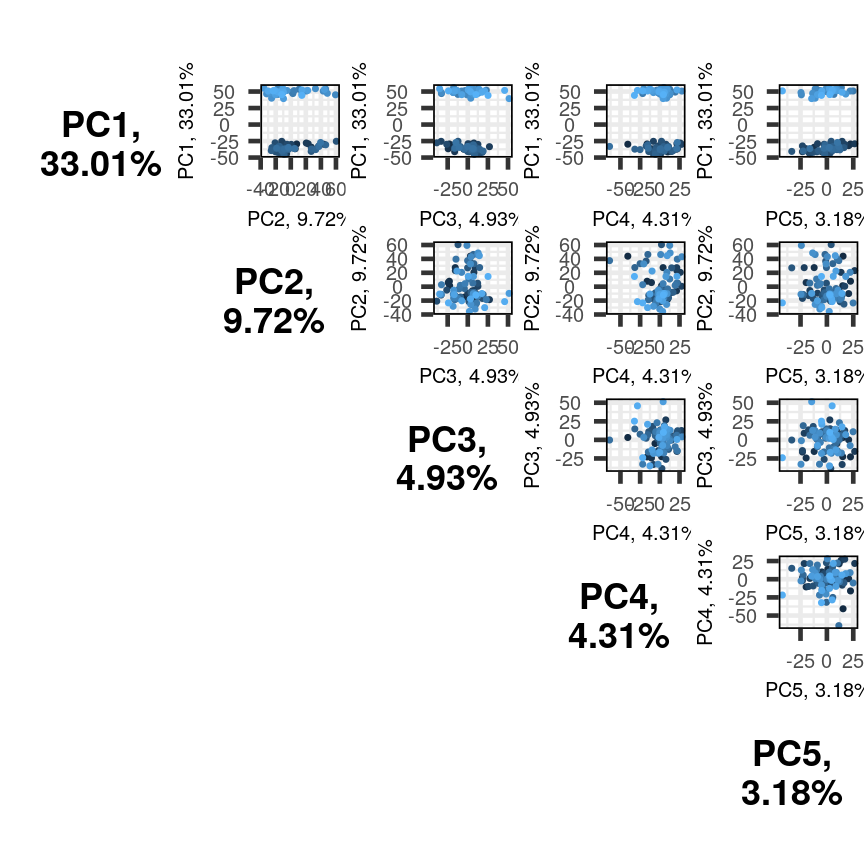

pairsplot(pc)
Alt

Alt

The plots show two apparent clusters involving the first principal component only. No other clusters are found involving other principal components. Each dot is coloured differently along a gradient of blues. This can potentially help identifying the same observation/individual in several panels. Here too, the argument colby allows you to set custom colours.

Finally, it can sometimes be of interest to compare how certain variables contribute to different principal components. This can be visualised with plotloadings() from the PCAtools package. The function checks the range of loadings for each principal component specified (default: first five PCs). It then selects the features in the top and bottom 5% of these ranges and displays their loadings. This behaviour can be adjusted with the rangeRetain argument, which has 0.1 as the default value (i.e. 5% on each end of the range). NB, if there are too many labels to be plotted, you will see a warning. This is not a serious problem.

plotloadings(pc, c("PC1"), rangeRetain = 0.1)
plot of chunk loadingsplots

plot of chunk loadingsplots

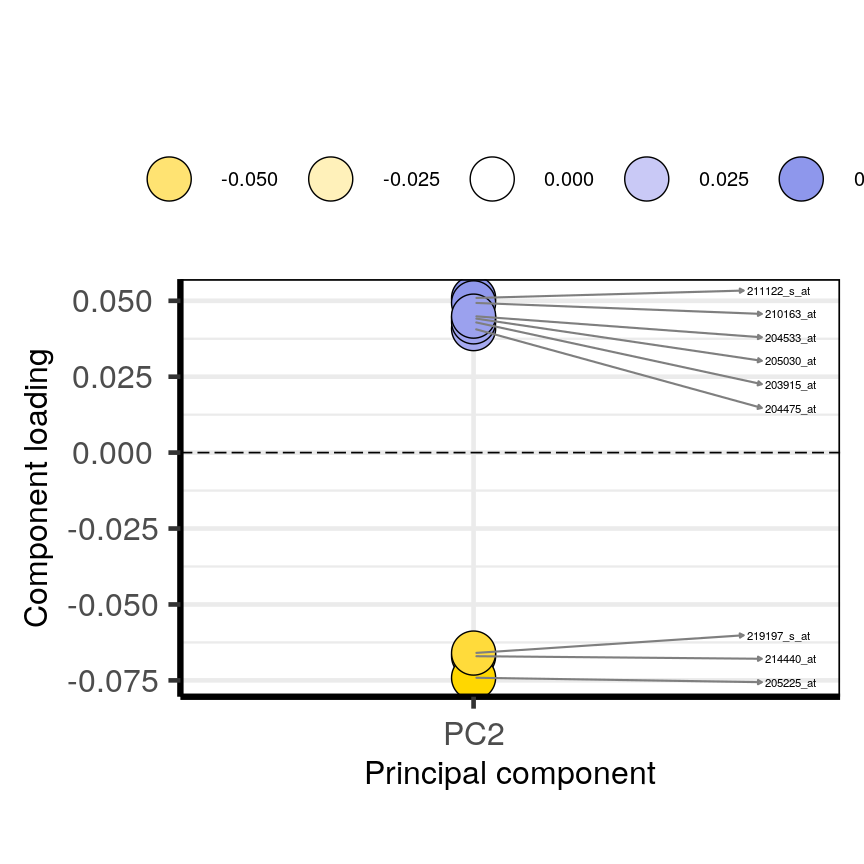

plotloadings(pc, c("PC2"), rangeRetain = 0.1)
plot of chunk loadingsplots

plot of chunk loadingsplots

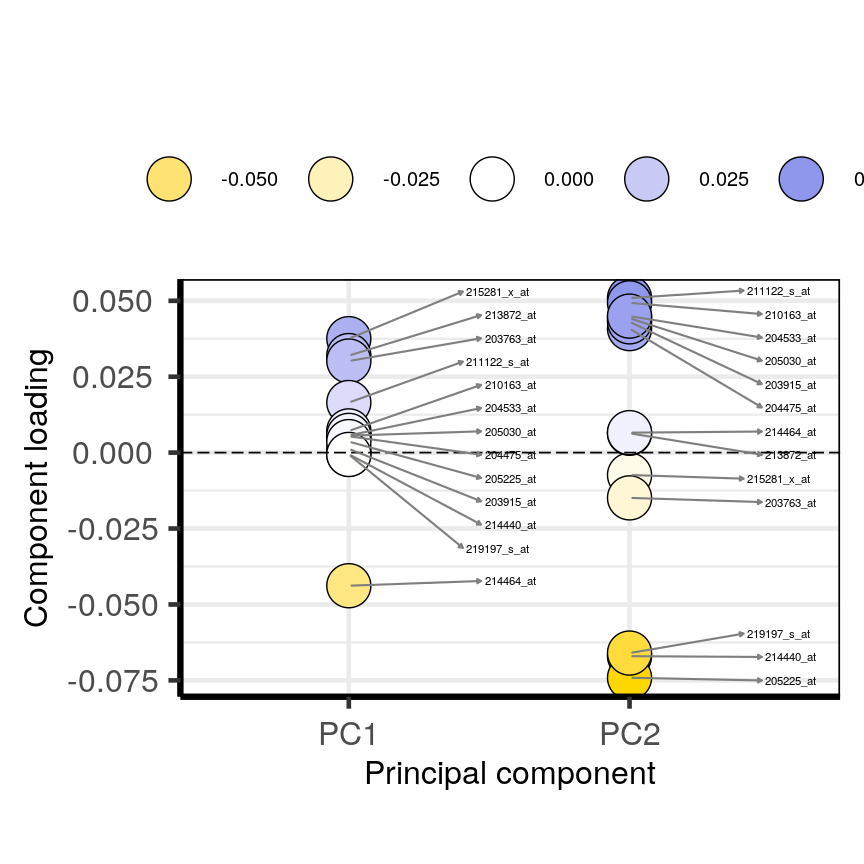

plotloadings(pc, c("PC1", "PC2"), rangeRetain = 0.1)
plot of chunk loadingsplots

plot of chunk loadingsplots

You can see how the third code line prooces more dots, some of which do not have extreme loadings. This is because all loadings selected for any PC are shown for all other PCs. For instance, it is plausible that features which have high loadings on PC1 may have lower ones on PC2.

Using PCA output in further analysis

The output of PCA can be used to interpret data or can be used in further analyses. For example, the PCA outputs new variables (principal components) which represent several variables in the original dataset. These new variables are useful for further exploring data, for example, comparing principal component scores between groups or including the new variables in linear regressions. Because the principal components are uncorrelated (and independent) they can be included together in a single linear regression.

Principal component regression

PCA is often used to reduce large numbers of correlated variables into fewer uncorrelated variables that can then be included in linear regression or other models. This technique is called principal component regression (PCR) and it allows researchers to examine the effect of several correlated explanatory variables on a single response variable in cases where a high degree of correlation initially prevents them from being included in the same model. This is called principal componenet regression (PCR) and is just one example of how principal components can be used in further analysis of data. When carrying out PCR, the variable of interest (response/dependent variable) is regressed against the principal components calculated using PCA, rather than against each individual explanatory variable from the original dataset. As there as many principal components created from PCA as there are variables in the dataset, we must select which principal components to include in PCR. This can be done by examining the amount of variation in the data explained by each principal component (see above).

Further reading

Key Points

  • A principal component analysis is a statistical approach used to reduce dimensionality in high-dimensional datasets (i.e. where $p$ is equal or greater than $n$).

  • PCA may be used to create a low-dimensional set of features from a larger set of variables. Examples of when a PCA may be useful include reducing high-dimensional datasets to fewer variables for use in a linear regression and for identifying groups with similar features.

  • PCA is a useful dimensionality reduction technique used in the analysis of complex biological datasets (e.g. high throughput data or genetics data).

  • The first principal component represents the dimension along which there is maximum variation in the data. Subsequent principal components represent dimensions with progressively less variation.

  • Screeplots and biplots may be used to show: 1. how much variation in the data is explained by each principal component and 2. how data points cluster according to principal component scores and which variables are associated with these scores.

previous episode

next episode
